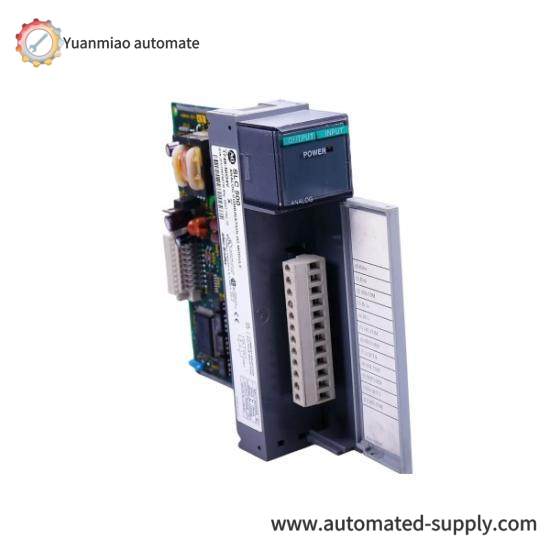

Allen Bradley 1746-NIO4V SLC 500 Analog Combination Module

Number of Analog Inputs/Outputs:4

Voltage Range:0 to 10 VDC / 4 to 20 mA

Sampling Rate:20 samples/sec per channel

Power Consumption:5 W

Operating Temperature Range:-40°C to 70°C

Connection Type:DB-25 Connector

Communication Protocol:ControlNet

Dimensions (WxHxD):139 x 123 x 92 mm

Weight:0.2 kg

    Experience unmatched precision in analog signal conversion with our Allen Bradley 1746-NIO4V SLC 500 Analog Combination Module. This high-resolution module offers unparalleled accuracy in handling both input and output signals, making it an indispensable component in industrial automation environments.

    Designed for efficiency and reliability, this module supports a common mode voltage range of -20 to 20V, ensuring compatibility with a wide variety of industrial applications. Its absolute input voltage capacity of +/- 7.5 VDC or 7.5 VAC RMS guarantees robust performance under varying electrical conditions.

    With an input range of -20 to 20MA and an absolute input current capacity from -30 to 30MA, the 1746-NIO4V is capable of accurately processing a broad spectrum of analog signals. Moreover, its output range of -10 to 10V – 1 LSB ensures consistent and reliable output signals, crucial for maintaining operational integrity in automated processes.

    Overvoltage protection at 7.5VAC RMS safeguards the module against power surges, enhancing its durability and reliability. Additionally, the input range of -10 to 10VDC – 1 LSB ensures that the module can handle a wide variety of input voltages without compromising performance.

    Backplane current draw of 55MA ensures efficient power consumption, minimizing energy costs while maximizing operational efficiency. This feature, combined with its open-type enclosure, makes the 1746-NIO4V a versatile and space-efficient addition to any industrial automation system.
