Communication Protocol:Ethernet/IP
Motion Axes:Up to 16 axes
TCP/IP Connections:128 connections
CIP Connections:256 connections
Port Type:RJ45 copper
User Memory:2MB
I/O Memory:1MB
USB Port:Available
Controller Connections:500
Display:5-character alpha-numeric
Power Supply:500mA @ 1.2VDC, 800mA @ 5.1VDC

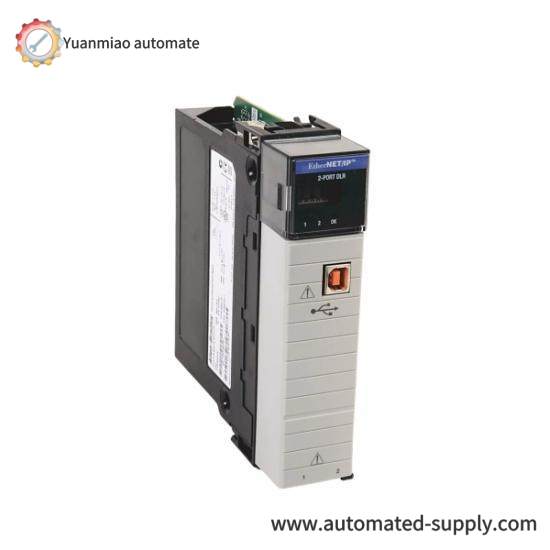

The Allen Bradley 1756-EN3TR/B ControlLogix Ethernet Motion Module is engineered to enhance the performance of complex industrial automation systems by providing robust motion control capabilities over an Ethernet network. This module seamlessly integrates with ControlLogix PLC systems, ensuring smooth communication and data exchange between motors, sensors, and the control system.
With its high-speed Ethernet/IP interface, the 1756-EN3TR/B offers fast and reliable data transmission, making it ideal for applications requiring real-time synchronization and control. The module supports position, velocity, and acceleration control, allowing for precise adjustment of motor speed and direction, thereby optimizing efficiency and reducing wear on mechanical components.
Designed with durability in mind, this module is rated for operation within a wide temperature range from -40°C to 70°C, making it suitable for use in harsh industrial environments. Its compact size and rack-mountable design facilitate easy installation and integration into existing automation setups.
Featuring a compact enclosure type, the 1756-EN3TR/B minimizes the footprint on the control panel, ensuring efficient space utilization without compromising on functionality. The module is equipped with environmental ratings that comply with NEMA standards, ensuring protection against dust, moisture, and other contaminants commonly found in industrial settings.
The Allen Bradley 1756-EN3TR/B ControlLogix Ethernet Motion Module comes with Allen-Bradley’s commitment to quality and reliability, backed by extensive experience in the automation industry. It is designed to meet the stringent demands of modern manufacturing processes, offering enhanced productivity, reduced downtime, and improved overall system performance.
