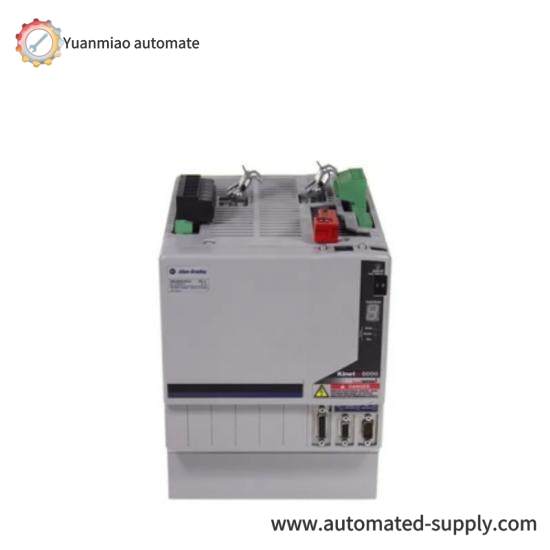

Allen-Bradley Kinetix 6000 2094-BC04-M03 SDrive

Continuous Current (rms):4.0 A

Continuous Current (0-peak):6.0 A

Line Loss Ride Through:20 ms

AC Input Voltage Range:324-528 VAC

Internal Shunt Continuous Power:50 W

Internal Shunt Peak Power:5600 W

Bus Overvoltage:825 VDC

DC Efficiency:95%

Operating Temperature Range:-40°C to +70°C

Humidity:5-95% RH

Shock Resistance:3 perpendicular directional 15G pulses

Vibration Resistance:2G at 5-55Hz

Altitude Operation:Up to 10,000 ft (3048 m)

Weight:Approximately 4.5 lb (2.04 kg)

    The Allen-Bradley Kinetix 6000 2094-BC04-M03 SDrive is engineered to offer superior performance and adaptability, making it a game-changer for industrial machinery. Its modular design ensures seamless integration into existing systems, while its advanced motion control capabilities enhance productivity and efficiency.

    Featuring a compact form factor, the SDrive reduces占地面积, allowing for easier installation and maintenance. Its compatibility with multi-axis integrated motion control through the Logix platform ensures smooth operation and reduced downtime.

    With built-in support for multi-turn absolute encoders and the ability to handle limited duty cycles for torque ratings up to 300% of continuous rated current, the 2094-BC04-M03 SDrive is equipped to handle demanding industrial tasks.

    Operable in a wide range of temperatures from 32°F to 122°F and humidity levels from 5% to 95% non-condensing, this drive ensures reliability under various environmental conditions. It is also designed for use at altitudes up to 1000m without de-rating.

    The SDrive includes a Safe Torque-off feature, providing an additional layer of safety during maintenance and servicing. Its availability in multiple series offers flexibility in choosing between standard or enhanced overload support based on specific application requirements.
